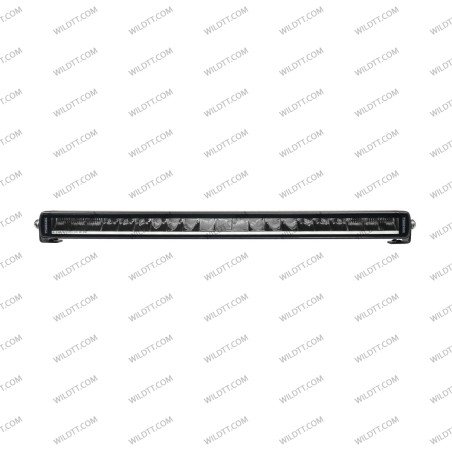

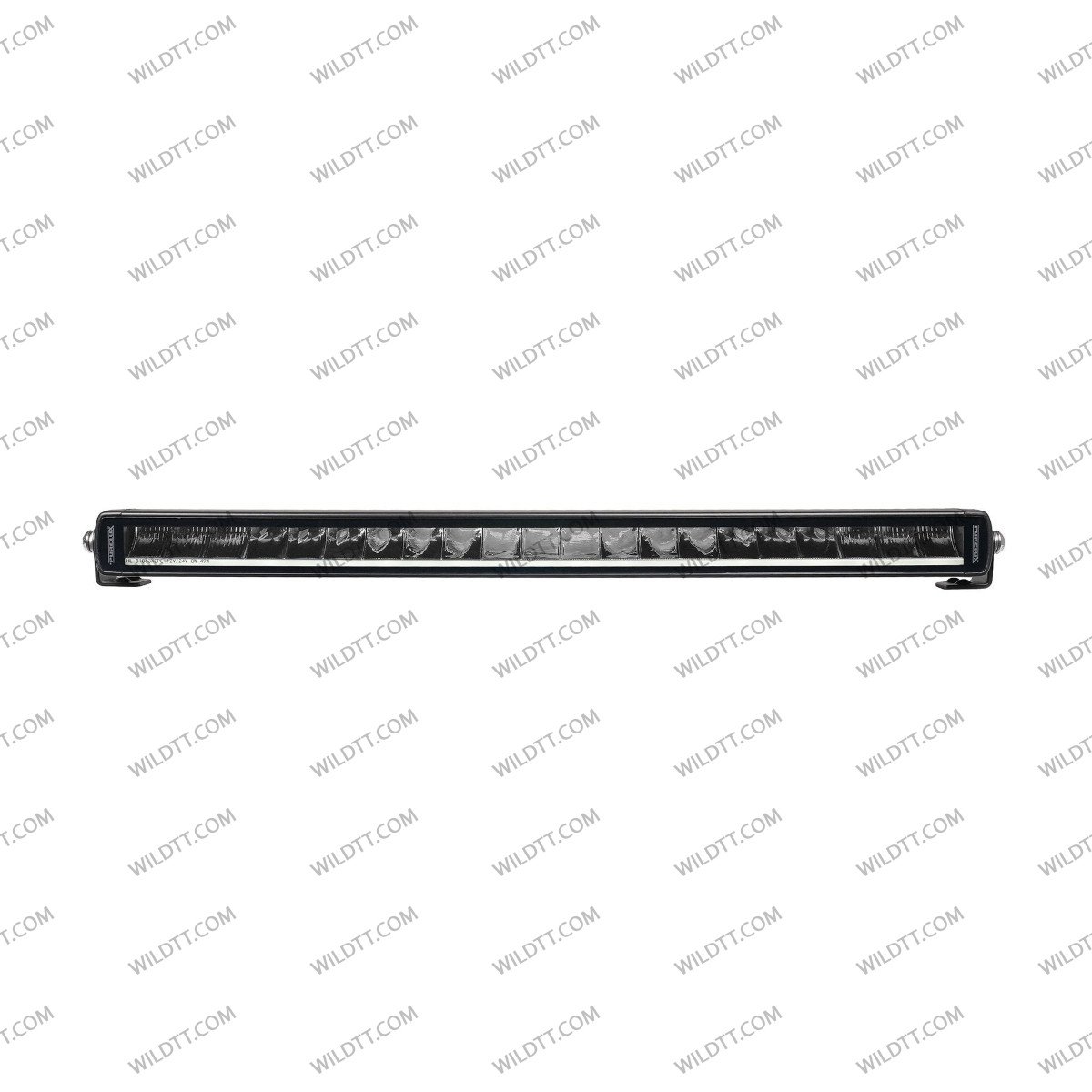

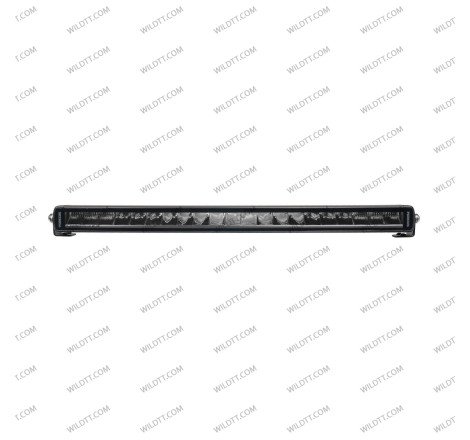

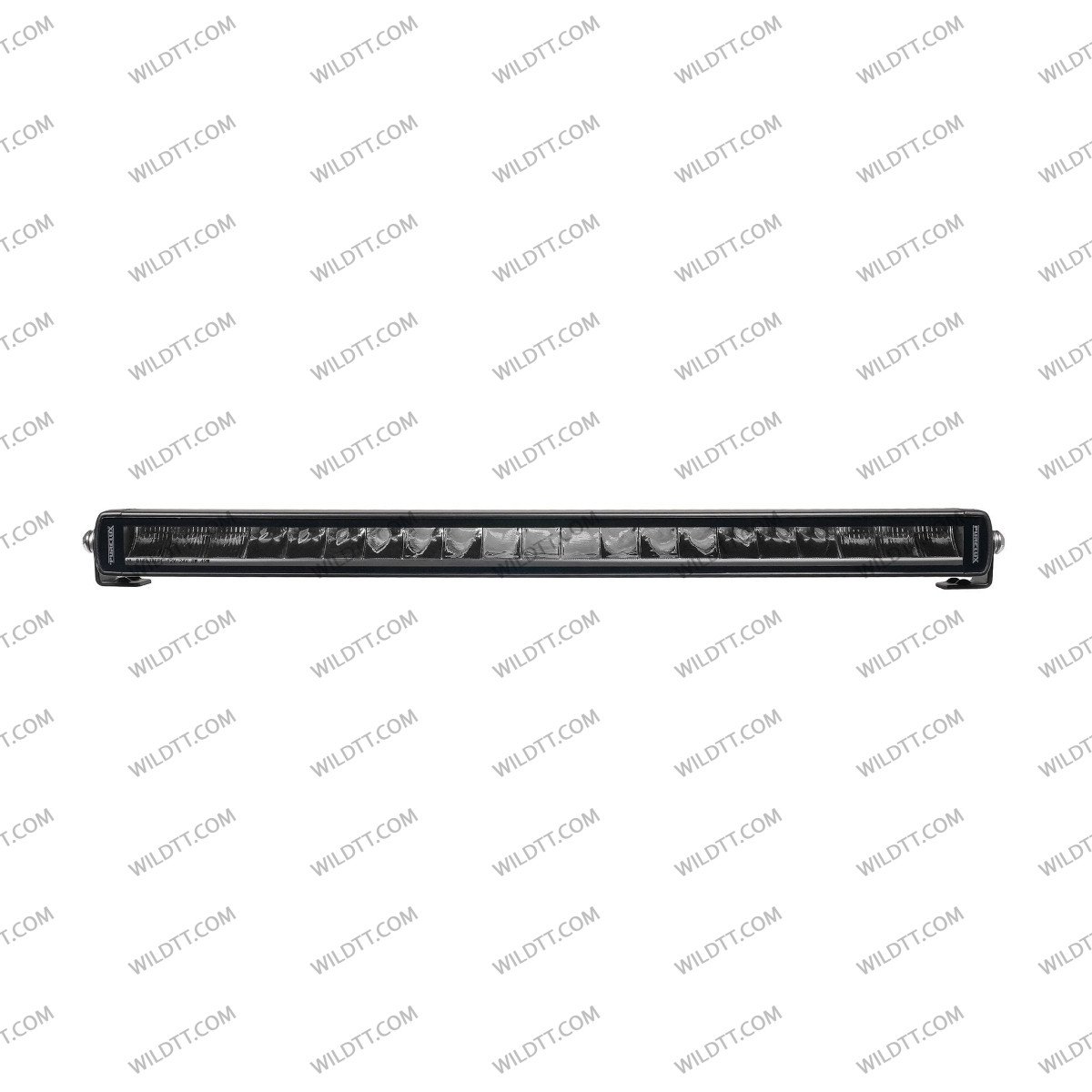

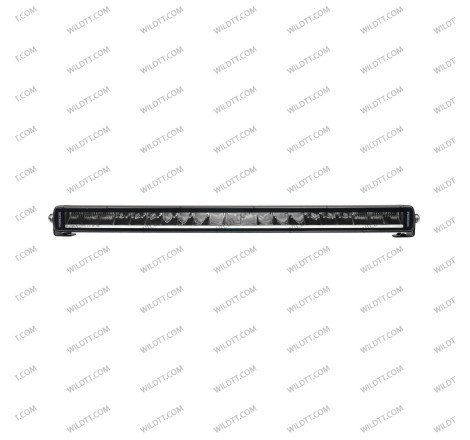

X-Slim Curved LED Bar

Name: X-Slim Curved LED Bar
Brand: Purelux
SKU: C52052105

SKU: C52052105

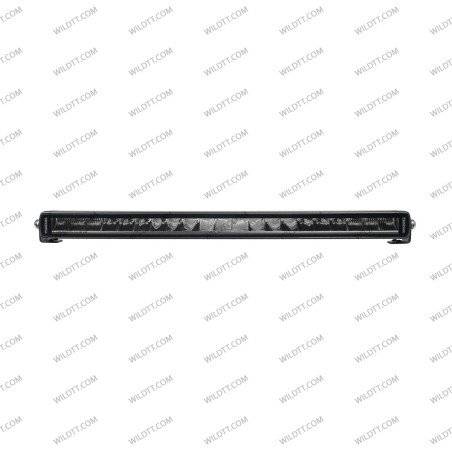

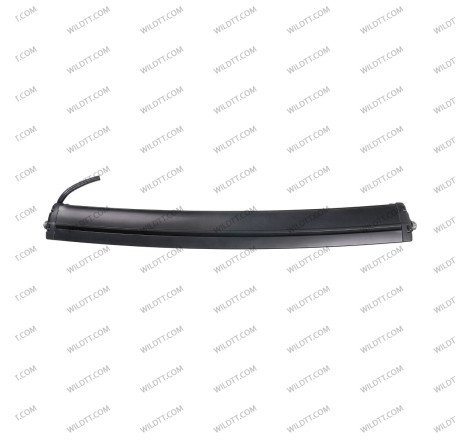

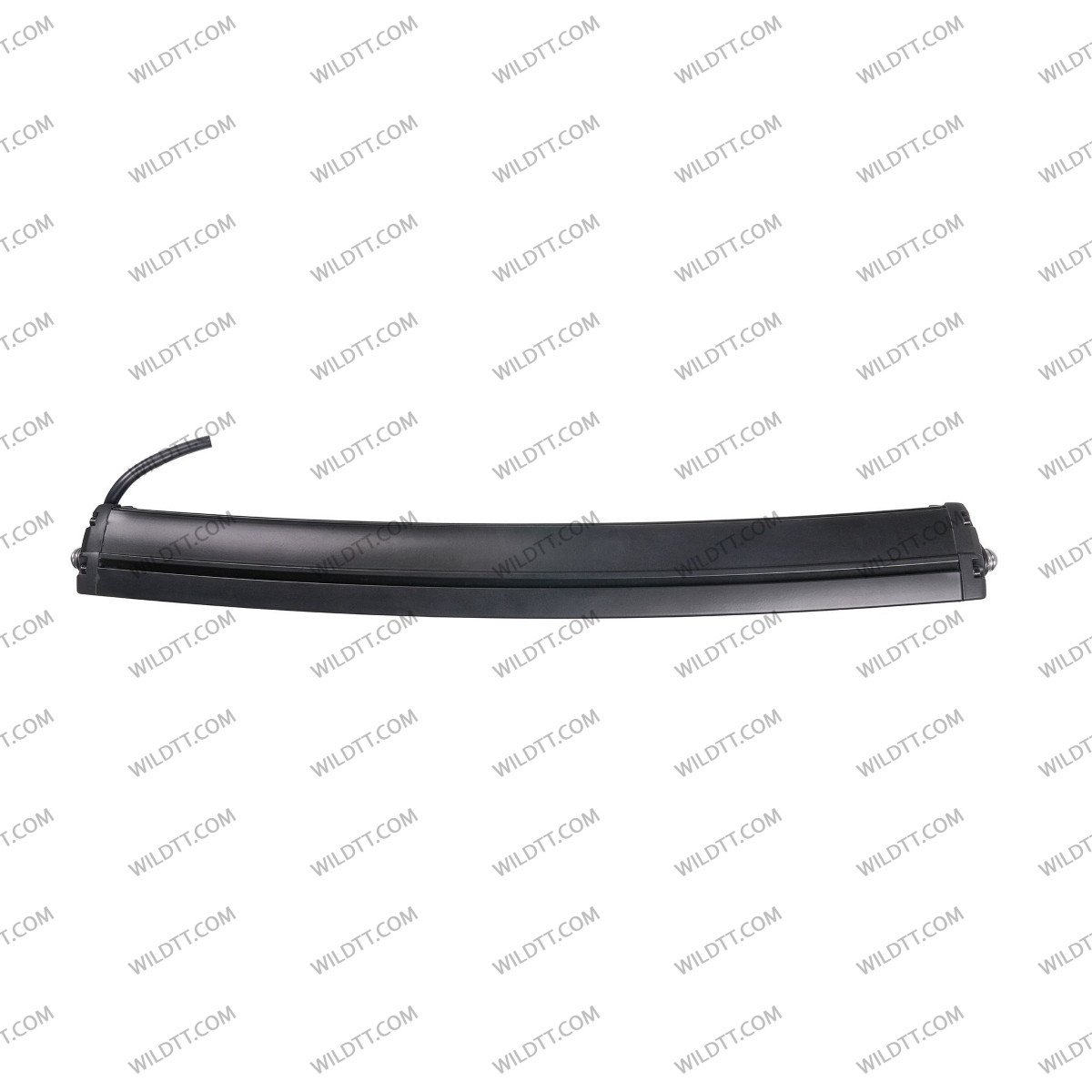

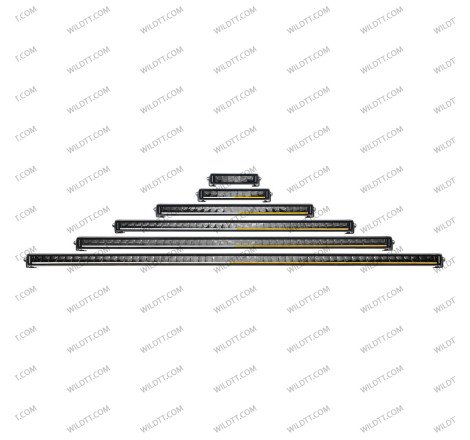

The curved X-Slim Bar is a high-performance LED light bar, available in 52 cm, 80 cm, and 101 cm lengths.

Equipped with a single visible filament, it offers power, an ultra-slim curved design, versatility, and a modern look for any type of vehicle.

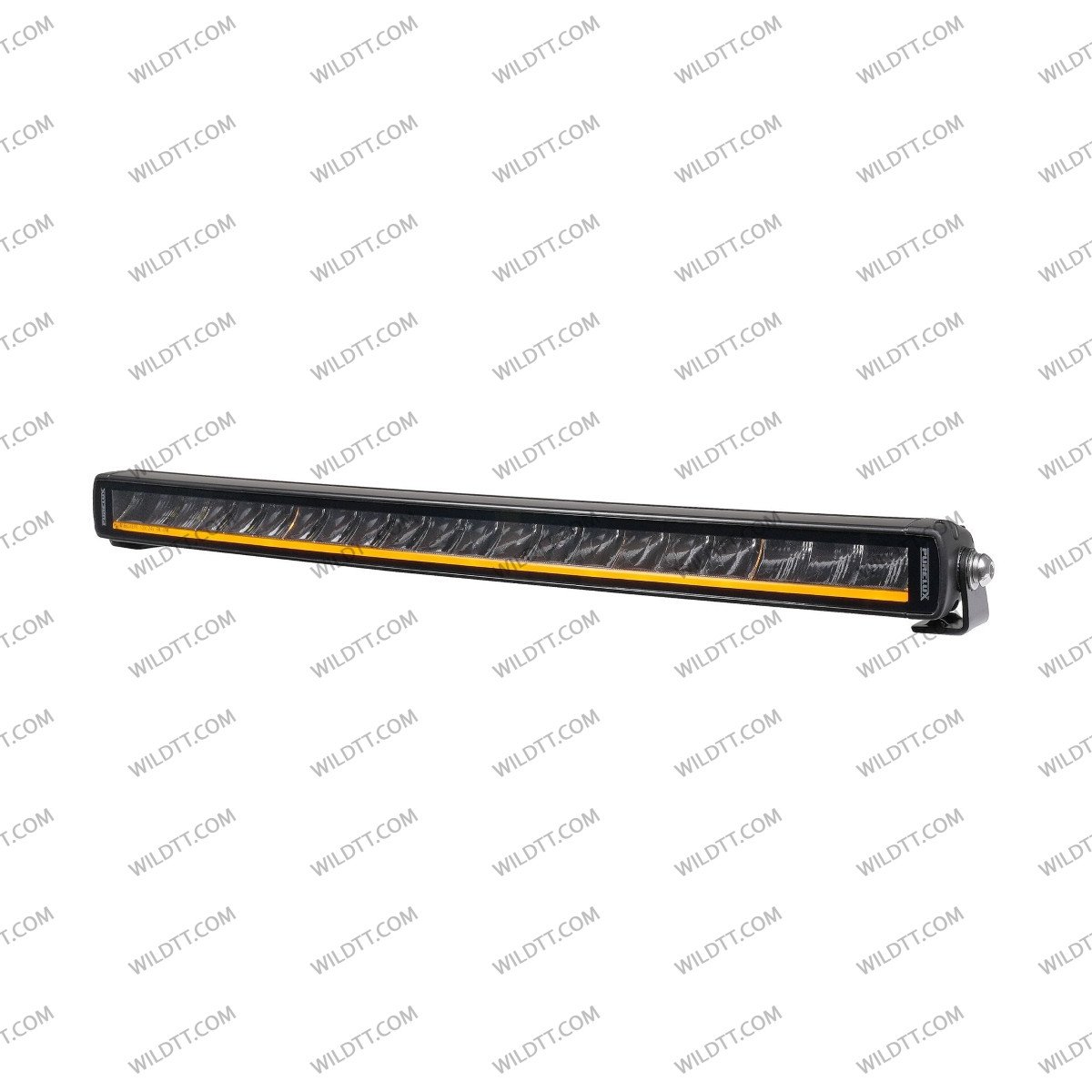

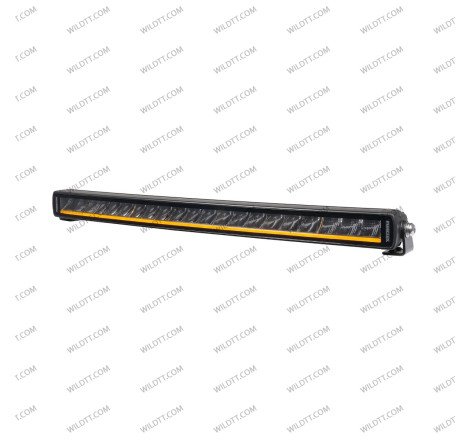

All versions include a position light function in amber and/or white.

Information Request

The curved X-Slim Bar was developed to provide maximum visibility and performance in any situation. Available in 52 cm, 80 cm, and 101 cm lengths, it easily adapts to different types of vehicles, from 4x4s and SUVs to commercial and work vehicles.

Equipped with a single visible filament, it delivers consistent and efficient lighting, ensuring simple and reliable use in any context. All versions include a position light function in amber and/or white, enhancing vehicle presence and improving road safety.

With a powerful and uniform light beam, it ensures excellent range and wide coverage, significantly improving visibility during night driving or in adverse conditions. Its ultra-slim, robust curved construction is designed to withstand vibrations, dust, and harsh weather, making it a reliable solution for demanding use both on-road and off-road.

It combines technology, minimalist design, and durability in a single unit, making it the ideal choice for those seeking additional lighting with professional performance and a modern, distinctive aesthetic.

Reference C52052105

Data sheet

Product Type: LED Lightbars
Vehicle Type (Compatibility): Universal

No customer reviews for the moment.

Brand and model: Purelux Black X-Slim C800 Gen3
Purpose: As an additional light for cars / off-road vehicles / work machines
LED: Osram
Operating voltage: 9–32 V
Calculated power: 165 W

Consumption:
Purelux PowerBoost®: 11.58 A @ 12 V / 5.79 A @ 24 V
Road mode: 6.75 A @ 12 V / 3.375 A @ 24 V

Power:
Purelux PowerBoost®: 139 W @ 24 V
Road mode: 81 W @ 24 V

Light output declared by manufacturer: 13860 lm (Purelux PowerBoost®)
Measured light output: 11008 lm (PowerBoost®) / 6354 lm (Road mode)

Range:
468 m @ 1 lux / 936 m @ 0.25 lux (Purelux PowerBoost®)
356 m @ 1 lux / 712 m @ 0.25 lux (Traffic mode)

Color temperature declared by manufacturer: 5700 K
Measured color temperature: 5662 K

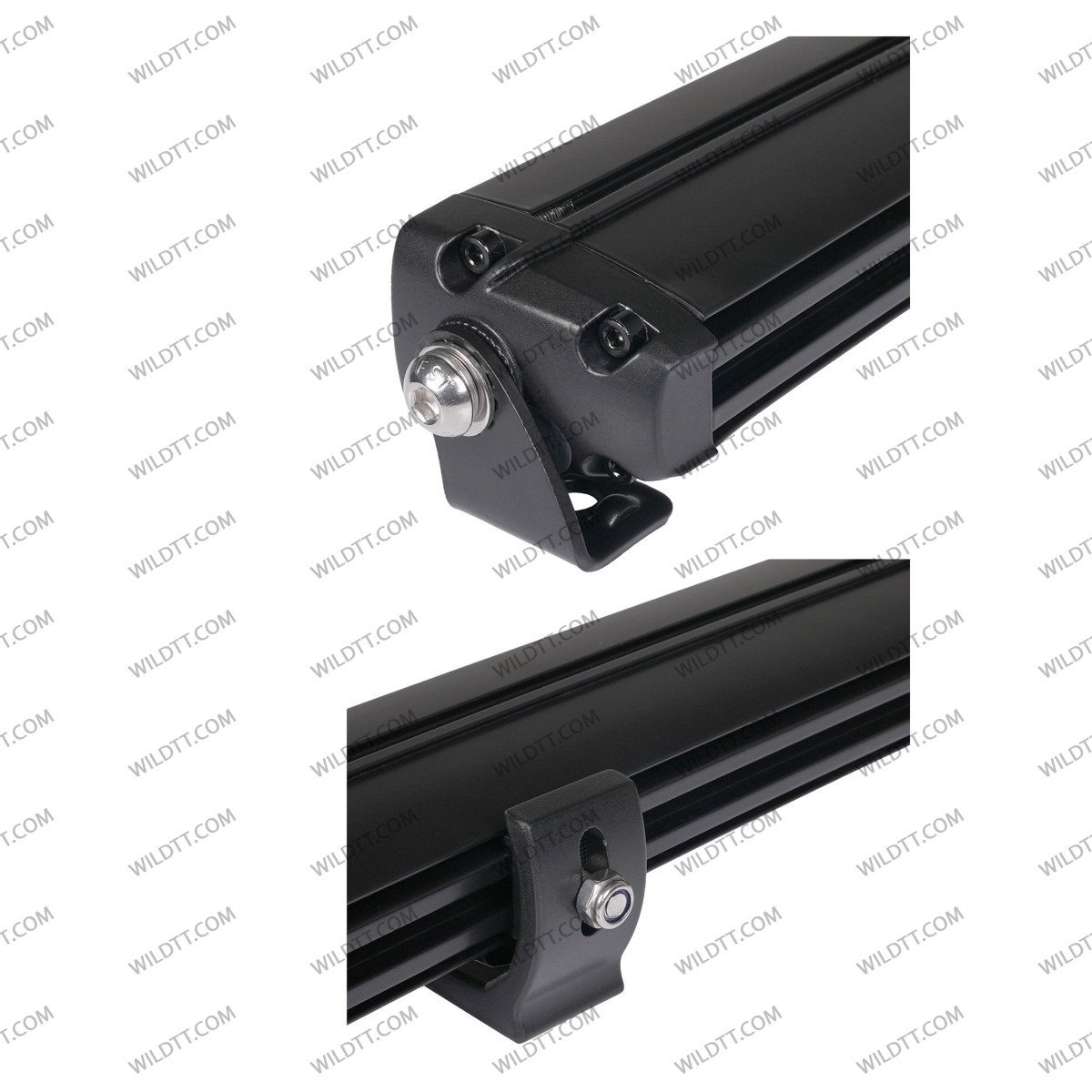

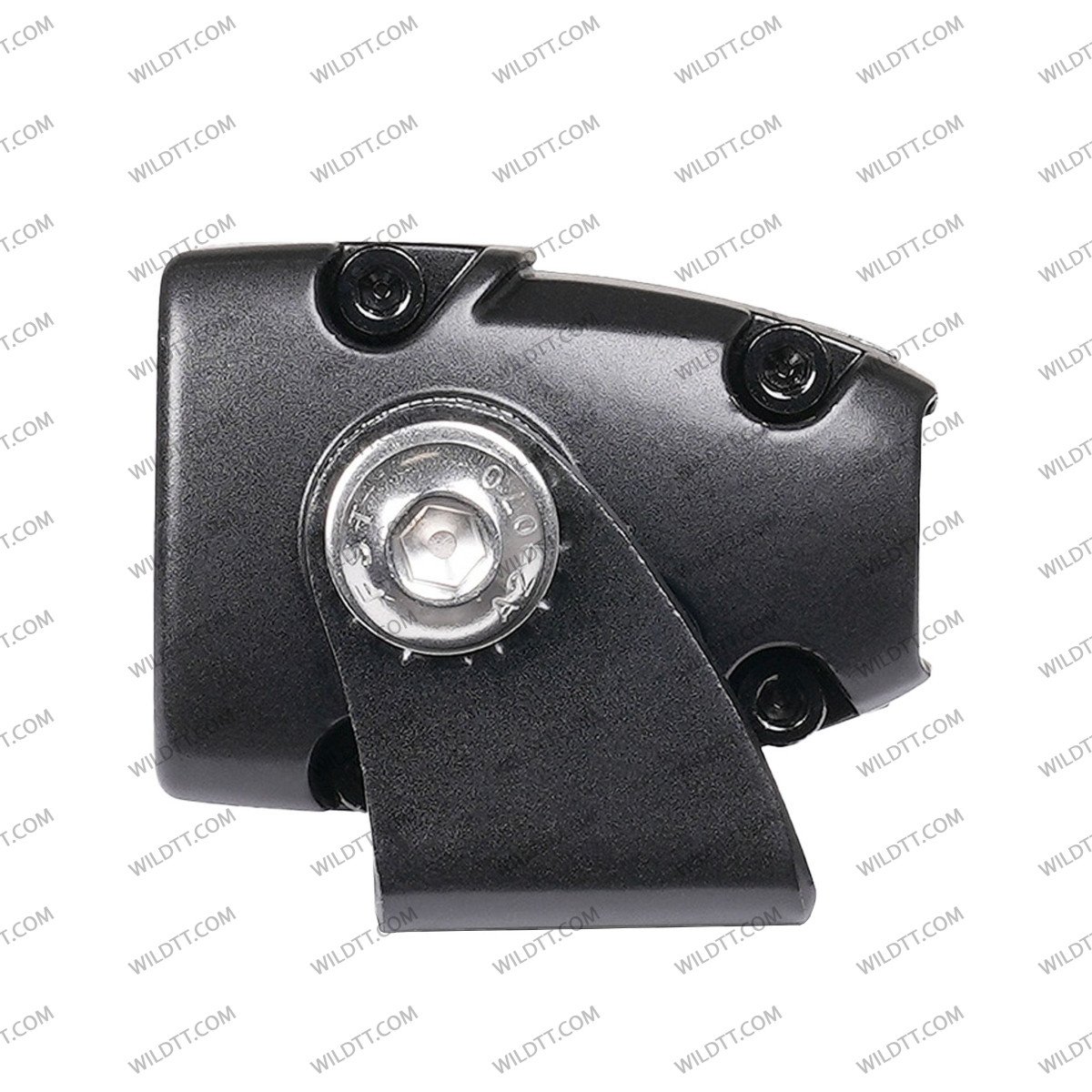

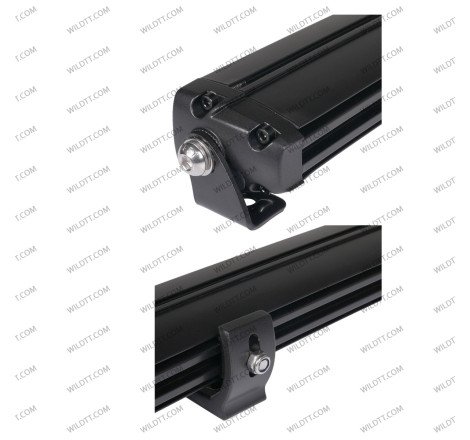

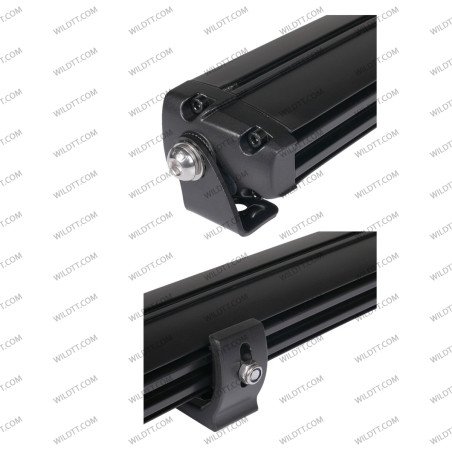

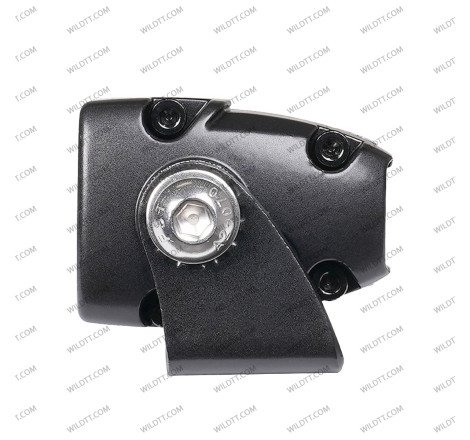

Mounting: End feet, width-adjustable lower feet
Connector: DTP-2
Cable length: 50 cm
Dimensions: 801.4 × 40 × 54.4 mm (Width × Height × Depth)
Height with end feet: 49 mm
Height with lower feet: 51 mm
Weight: 2000 g
Curvature radius: 2839 mm
IP rating: IP69K
Approvals: ECE: R10, R148, R149*

Road traffic approval does not apply to PowerBoost® mode

Brand and model: Purelux Black X-Slim C1010 Gen3
Purpose: As an additional light for cars / off-road vehicles / work machines
LED: Osram
Operating voltage: 9–32 V
Calculated power: 210 W

Consumption:
Purelux PowerBoost®: 15.08 A @ 12 V / 7.54 A @ 24 V
Road mode: 8.77 A @ 12 V / 4.38 A @ 24 V

Power:
Purelux PowerBoost®: 181 W @ 24 V
Road mode: 105.3 W @ 24 V

Light output declared by manufacturer: 17640 lm (Purelux PowerBoost®)
Measured light output: 13758 lm (PowerBoost®) / 7956 lm (Road mode)

Range:
459 m @ 1 lux / 918 m @ 0.25 lux (Purelux PowerBoost®)
355 m @ 1 lux / 710 m @ 0.25 lux (Traffic mode)

Color temperature declared by manufacturer: 5700 K
Measured color temperature: 5682 K

Mounting: End feet, width-adjustable lower feet
Connector: DTP-2
Cable length: 50 cm
Dimensions: 1007.1 × 40 × 54.4 mm (Width × Height × Depth)
Height with end feet: 49 mm
Height with lower feet: 51 mm
Weight: 2500 g
Curvature radius: 2839 mm
IP rating: IP69K
Approvals: ECE: R10, R148, R149*

Road traffic approval does not apply to PowerBoost® mode

Brand and model: Purelux Black X-Slim C520 Gen3
Purpose: As an additional light for cars / off-road vehicles / work machines
LED: Osram
Operating voltage: 9–32 V
Calculated power: 105 W

Consumption:
Purelux PowerBoost®: 7.33 A @ 12 V / 3.66 A @ 24 V
Road mode: 4.25 A @ 12 V / 2.125 A @ 24 V

Power:
Purelux PowerBoost®: 88 W @ 24 V
Road mode: 51 W @ 24 V

Light output declared by manufacturer: 8820 lm (Purelux PowerBoost®)
Measured light output: 6857 lm (PowerBoost®) / 4012 lm (Road mode)

Range:
419 m @ 1 lux / 838 m @ 0.25 lux (Purelux PowerBoost®)
312 m @ 1 lux / 624 m @ 0.25 lux (Traffic mode)

Color temperature declared by manufacturer: 5700 K
Measured color temperature: 5650 K

Mounting: End feet, width-adjustable lower feet
Connector: DT-2
Cable length: 50 cm
Dimensions: 525.5 × 40 × 54.4 mm (Width × Height × Depth)
Height with end feet: 49 mm
Height with lower feet: 51 mm
Weight: 1400 g
Curvature radius: 2839 mm
IP rating: IP69K
Approvals: ECE: R10, R148, R149*
